DS820DX

DS820DX

8-INCH DUPLEX DYE-SUBLIMATION PRINTER

The DS820DX printer is not only the new flagship of our range, but also the most complete model in its category. Drawing on our accumulated expertise in dye-sublimation photo printing, it innovates by enabling horizontal and vertical cutting, as well as folding. Combined with double-sided printing, these new features offer an impressive variety of print jobs.

From simple prints to 8x12" (20x30cm) enlargements, photo albums, greeting cards and brochures, the DS820DX is a model of universality. Its remarkable compactness and design simplify installation, and are two major assets for kiosk integrators and points of sale alike.

The DS820DX also comes with dedicated creative software that lets you select, create and print 48 different print jobs at five different finishing levels !

Benefits
Benefits:

Innovation
With its double-sided printing capabilities, vertical and horizontal cuts and unique folding function, the DS820DX can handle 48 different print jobs:

  • Photo books: from 10x20cm to 20x30cm (6x8'‘ to 8x12’')
  • Calendars (single-sided, double-sided): from 20x25cm to 20x30cm (8x10'‘ to 8x12’')
  • Greeting cards, leaflets (portrait, landscape): from 10x20cm to 20x20cm (4x8'‘ to 8x8’')
  • Photo prints (single-sided, double-sided) : from 10x10cm to 20x30cm (4x4'‘ to 8x12’')

Fast, simple and reliable
Thousands of DNP printers have been proving their reliability every day for many years, to the acclaim of their users. The DS820DX is no exception to this rule, while offering remarkable ease of use.

Dedicated creative software
The DS820DX Photo Print software lets you quickly select, create and print an incredible number of print jobs:

  • Intuitive interface
  • Varied designs with annual updates* for print job customization
  • Usable with DNP software (DS LAB / SL Pro / SL+)
  • Compatible with Windows and Mac

Cost-efficiency
The DS820DX features a standby mode for low power consumption (0.5w) and offers five different print finishes with the same media, so there's no need to change media. Saving time and increasing productivity.

* paying option


Specifications
Specifications:

Specifications

Printing unit Duplex

Printing technology Dye sublimation transfer

Product code 212830

Gradations 256 (8-bit) per color

Resolution 300×300 (high-speed mode) 300×600 (high-speed mode)

Rewind function Yes

Connectivity available DST4, DST4 Lite, DSTMini, DT-T6mini,DST4, DST4 Lite, DSTMini, DT-T6mini,DT-T9 Lite, DT-T90

Buffer memory 128 Mo

Interface USB 2.0 (type B)

pprox. weight ~ 22kg

Consumables loading Front-loading

Power consumption (printing) 100 -240 v, 50/60Hz, 3.9A - 1.6A

Print speed (High-speed / Glossy mode)

 Simplex 10x20cm (4x8”) : ~ 23.6
20x30cm (8x12”) :~ 36.4’
Duplex 10x20cm (4x8”) : ~ 72.3’
20x30cm (8x12”) : ~ 91.8’



 Dedicated software DS820DX Photo Print Software (free)

Compatibility Windows 10 and later /MacOS 12 and later *

Print formats

 Simplex 10x10cm (4x4”) **/ 10x15cm (4x6”)/10x10cm (4x4”) **/ 10x15cm (4x6”)/10x15cm (4x6”) **/ 10x20cm (4x8”)/10x30cm (4x12”) **
13x20cm (5x8”)/ 15x20cm (6x8”)13x20cm (5x8”)/ 15x20cm (6x8”)20x20cm (8x8”)/20x25cm (8x10””)20x30cm (8x12”)
Duplex 10x20cm (4x8”)
13x20cm (5x8”) / 15x20cm (6x8”) /13x20cm (5x8”) / 15x20cm (6x8”) /16,5x20cm (6.5x8”) / 20x20cm (8x8”) /20x25cm (8x10””) / 20x26,5cm (8x10,5”) /20x27cm (8x10.75”) / 20x30cm (8x12”)



* MacOS version available spring 2025
** Formats available summer 2025

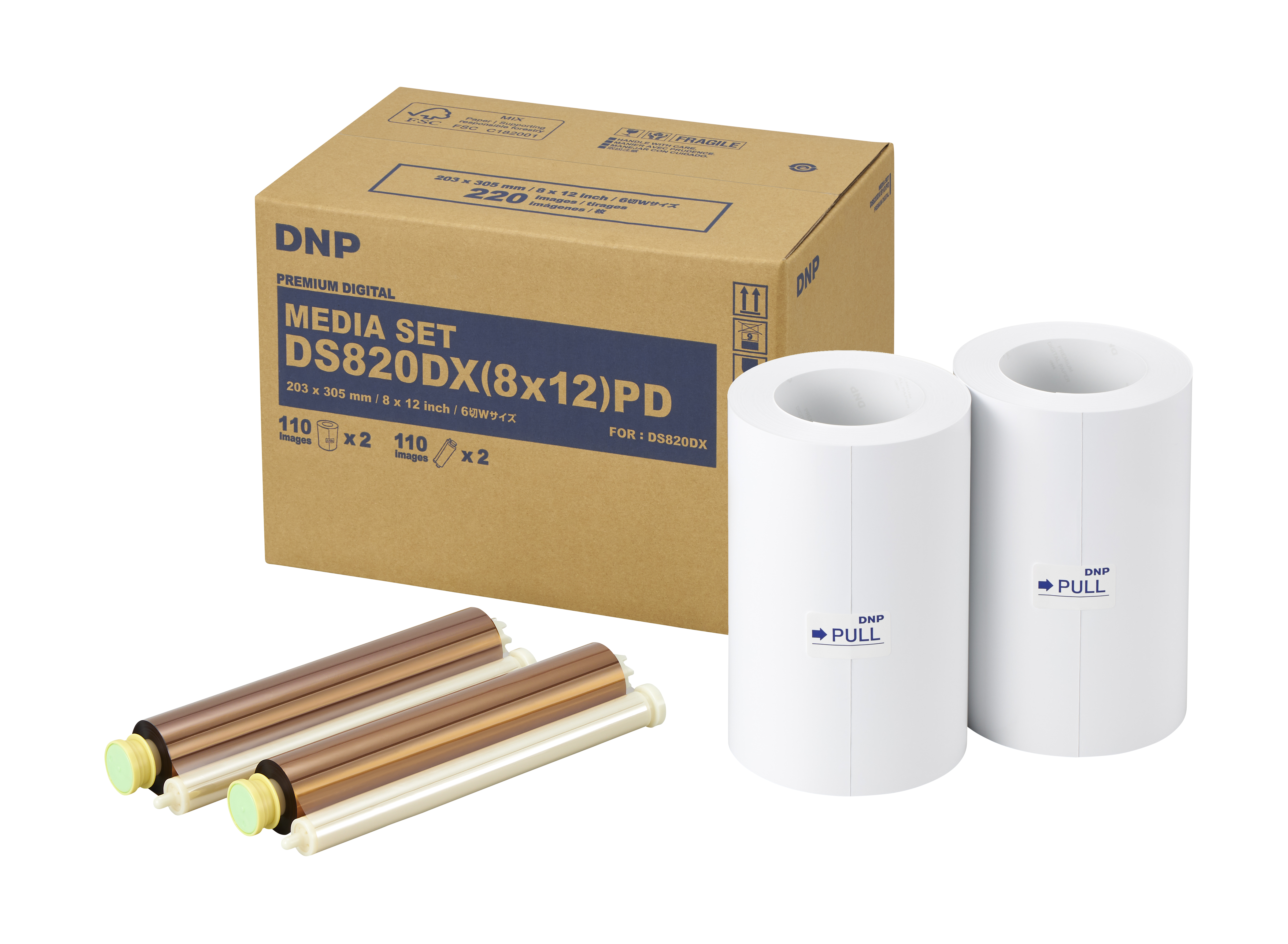

Media

Description Product code Prints/box
20x30cm (8x12”) Premium 20x30cm (8x12”) Premium Digital single-sided 212831 110 images x 2 sets
20x30cm (8x12’’) Premium 20x30cm (8x12’’) Premium Digital double-sided 212832 75 sheets (150 images) x 2 sets
